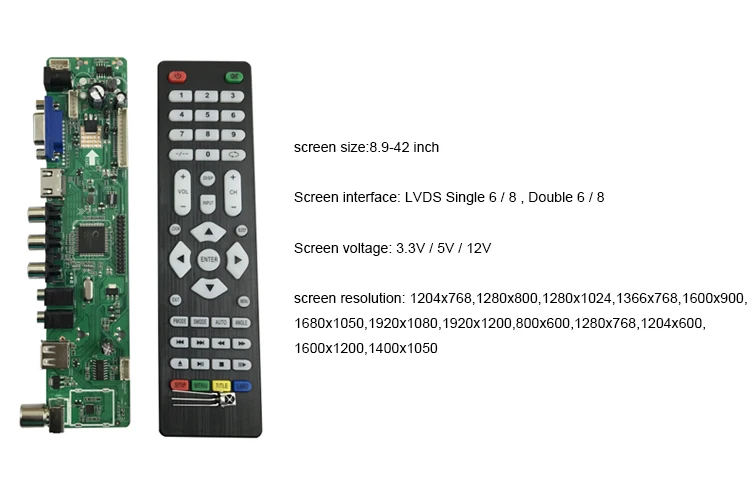

v56 LCD TV Controller Driver Board full kit DIY monitor for 30pin 2ch-8bit 4pcs CCFL LVDS panel LCD accessories
Model: LA.MV56U.A
Scheme of the chip: TSUMV56RUU-Z1
Input Interface: PC / VGA / HDMI / TV / USB multimedia playing
Voltage: Single 12 V
Screen voltage: 3.3V / 5V / 12V
Not only USB interface can be used to upgrade programs, but also can use to play video, basically formats are supported. You can also set a boot display pictures or LOGO
suport panel list:
LTM190M2-L31 HT190WG1-100 LM220WE1-TLA1 LM220WE1-TLB3 LM220WE1-TLD4 LM220WE1-TLE1 M190A1-L0A M240HW01 V0
M170EG02 V3 LTM190EX-L01 G170EG01 V0 HT170EX1-100 HSD190ME12-A00 LM190WX1-TLA1 M236MWF1 R0 CLAA170EA07Q
LTM230HT01 HT170E01-101 M201EW02 V8 M220Z1-L03 QD17EL07 Rev.11 M240HW01 V2 HT17E11-300 MT220WW01 V.1 ect.
HOW to check your panel suitable or not
open the web:panelook-----search your panel number-----see the interface type(must be 30pins LVDS 2ch-8bit )--------light source (must be CCFL 4pcs)
note:
1.check the screen is LVDS screen
2. v56 support screen resolution:1920*1080,1280*1024,1280*800,1366*768,1024*768,1600*900,1680*1050,HSD170MGW1_1440X900_DO8L_5V,
other type pls ask Customer service before payment.
3.all of the product sent same a discribe, pls don't note othere product in the order page.

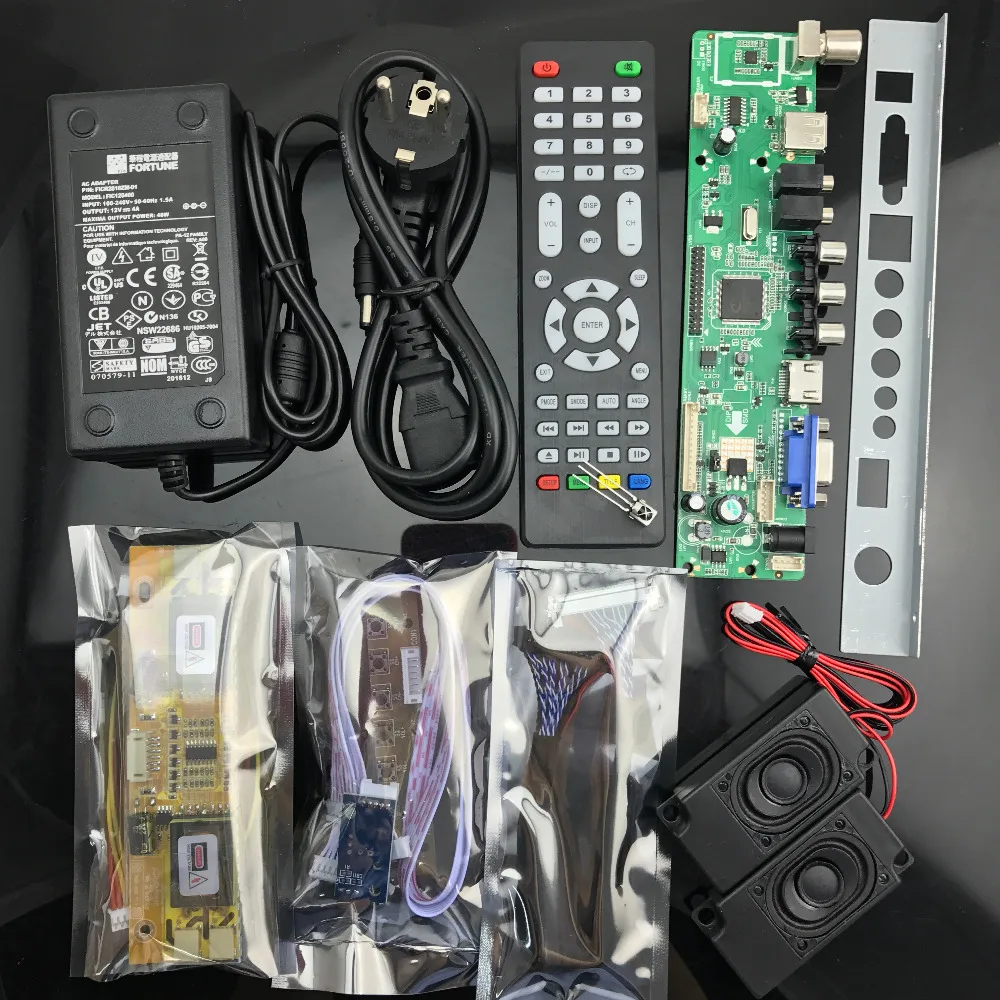

Package include:
v56 remote control----------------------------------1pcs
TSUMV56RUU-Z1 LCD driver board-----------1pcs
IR receiver---------------------------------------------1pcs
v56 baffle----------------------------------------------1pcs
12V 4A power adapter (default EU plug)------1pcs
4 lamp inverter----------------------------------------1pcs
7 keypad------------------------------------------------1pcs
8Ohm 3W LCD speaker----------------------------1pair
30pin 2ch-8bit lvds cable---------------------------1pcs
Use method:
step 1
leave email adress+panel number in the order page, we will sent a firmware to you.
or firmware download link
https://drive.google.com/open?id=0B9iZpCRNk2ApUF9KLS1WOHMwTTQ
step 2
Screen voltage jump line according to the working voltage of screen jump to the corresponding position
download the firmware,and install program.
Burning method: to record the screen program(LAMV56.bin) in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), light in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing light is the program written, electricity burn with USB flash disk to complete the program.
NOTE!!!!! :write programs do not power outages, crashing won't be able to use)
step 3
connect all the cables,and finished.(screen line not to reverse and dislocation)
common problem
Why screen show full blue/red color?
reply:it's must have install a wrong program,or the program is not suitable.so you change change another firmware,just according the the screen resolution choose the firmware .
Why the screen show unnormal?
reply:this can help you :Press menu-----then press 1147 enter the factory mode debugging.
Press menu to enter the menu------ in 1147 to enter the factory pattern - the first item in "general Settings"
---------the first adjust the line, "an LVDS MAP" from 0 to 15, and jump to a, and the screen display normal
why Chip fever?
reply:this must have conect wrong cable. pls stop use, and sent cable connect picture to customer service ask help.
Unit Type:
piece
Package Weight:
0.8kg (1.76lb.)
Package Size:
22cm x 11cm x 8cm (8.66in x 4.33in x 3.15in)
